Kishorn Port

Kishorn Port

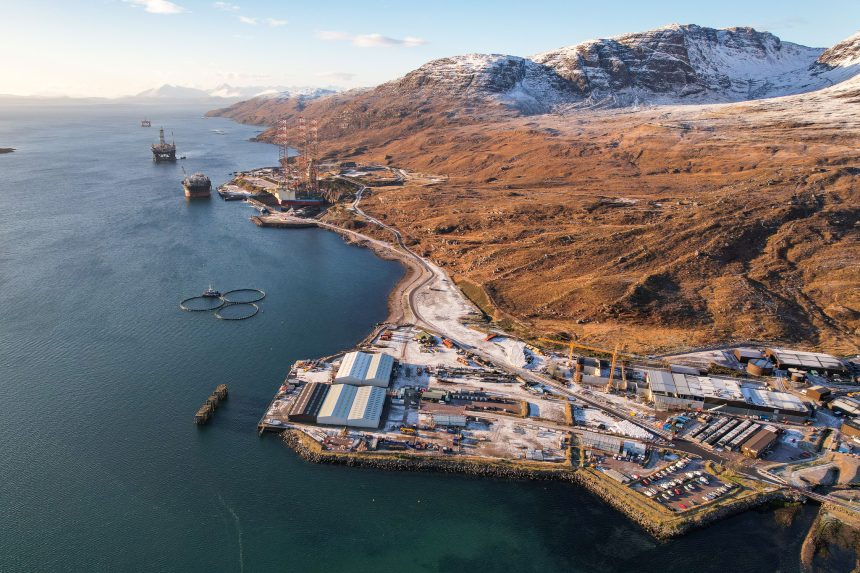

Kishorn Port and Dry Dock facility on the West Coast of Scotland. With approved planning for offshore wind manufacture and assembly, an extensive laydown area spanning 45Ha, 160m diameter dry dock, ample wet storage, and an onsite quarry with concrete batching, KPL accommodates renewables, and in particular, floating offshore wind.

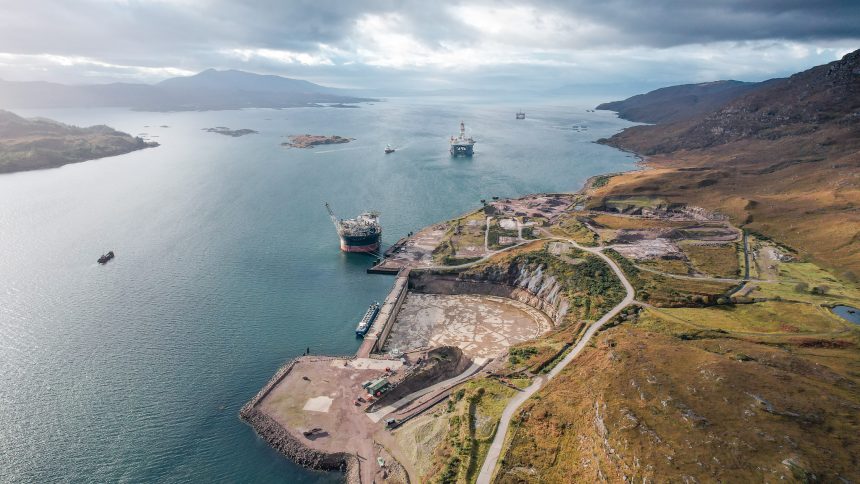

Empty Dry Dock with 3 Assets in Row

Address: Annat, Corpach, Fort William, PH33 7NN
Email: enquiries@kishornportltd.com
Website: www.kishornport.co.uk

  • 160m Operational Dry Dock
  • 17 Hectares of yard space
  • 7 Wet Storage Available
  • Onsite Quarry

Value Proposition for Offshore Wind

  • Manufacturing

    Manufacturing

  • Assembly

    Assembly

  • Fabrication

    Fabrication

  • Marshalling

    Marshalling

  • Wet Storage

    Wet Storage

  • Integration

    Integration

  • O&M

    O&M

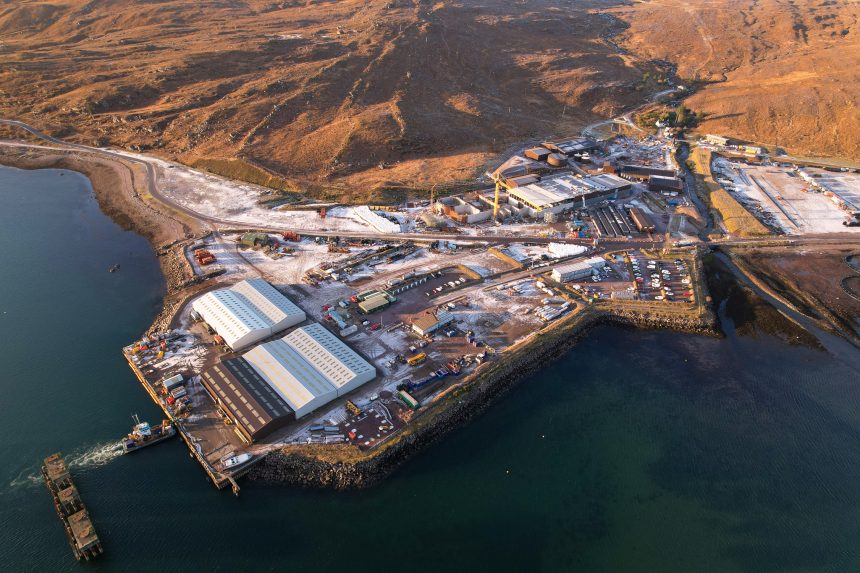

DJI 0039

Existing Infrastructure

  • Quay Length at <8m CD Water Depth: 298m
  • Quay Length at 8m-10m CD Water Depth: 166m
  • Total Quay Length: 460m
  • Max Load Bearing - Quayside: 25 t/m² UDL
  • Max Load Bearing - Storage Area: 15 t/m² UDL
  • Yard Space at Quayside: 17 Hectares
  • Covered Storage: 6,500 m²
  • Wet Storage: 7
Empty Dry Dock with 3 Assets in Row

Dry Dock Infrastructure

  • Working Area: 20,106 m²
  • Water Depth: 8.3m CD
  • Max Load Bearing: 700 t/m²
  • Gate Opening: 84m (1 gate open) & 166m (2 gates open)
  • Future Working Area Capacity: 26,106 m²

Offshore Wind Experience

  • Wet Storage

    Wet Storage

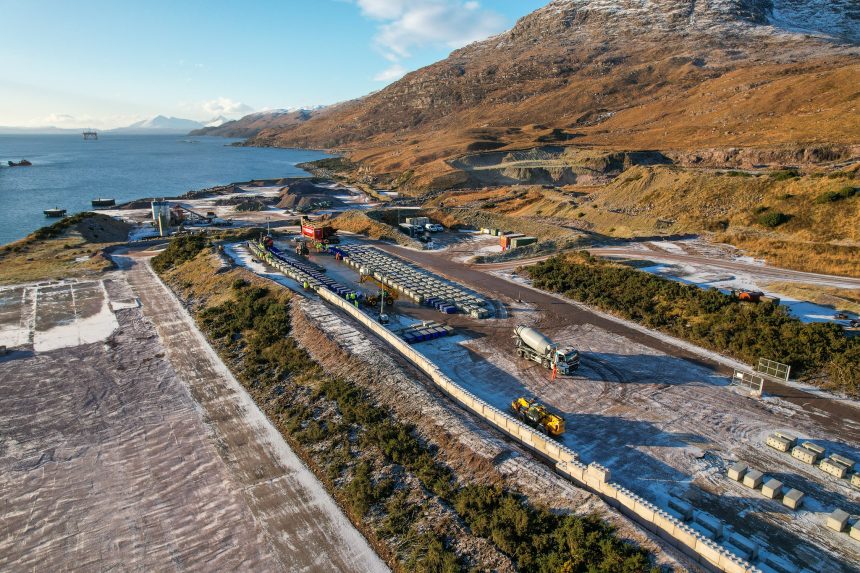

DJI 0011

Future Infrastructure Plans

  • Quayside Length: 910m
  • Water Depth - Minimum: 4.0m
  • Water Depth - Maximum: 20.0m
  • Load Bearing - Quayside: 30 t/m²
  • Load Bearing - Storage Area: 20 t/m²
  • Yard Space at Quayside: 32 Hectares
  • Wet Storage: 7
  • Year of Implementation: 2024
  • Year Available: 2028

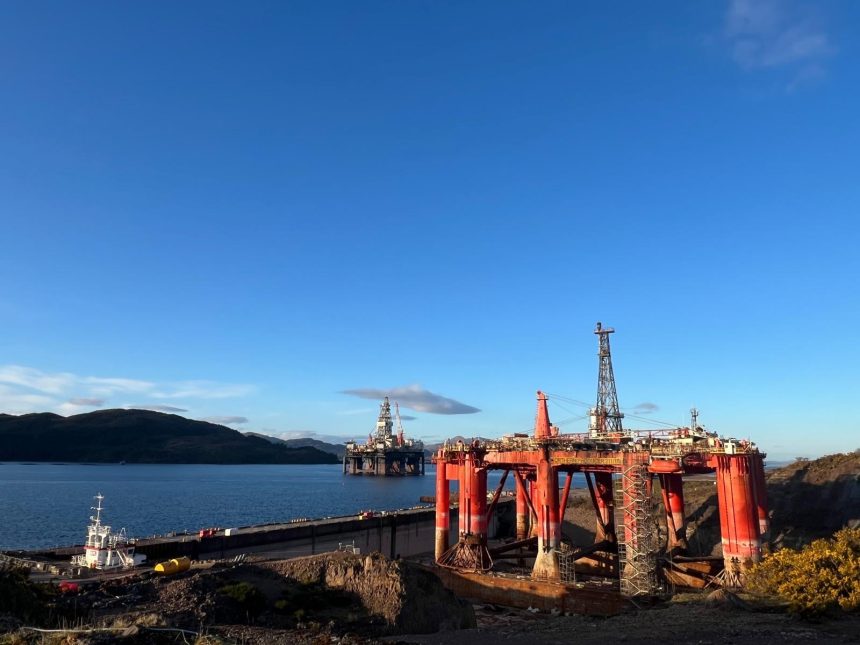

C81f2cd5 fefc 467d a5fe 3f891eb0d52c

Existing Infrastructure for XL Components

  • Heavy Lift Quay Length: 93m
  • Heavy Lift Quay Area: 12,400m²
  • Heavy Lift Load Bearing - Quayside: 25 t/m² UDL
  • Large Component Laydown Area: 17 Hectares
  • Laydown Area Load Bearing Capacity: 25 t/m² UDL

Future Infrastructure for XL Components

  • Heavy Lift Quay Length: 680m
  • Heavy Lift Quay Area: 20,400m²
  • Heavy Lift Load Bearing - Quayside: 50 t/m² UDL
  • Large Component Laydown Area: 32 Hectares
  • Laydown Area Load Bearing Capacity: 50 t/m² UDL
