Lerwick Harbour

Lerwick Harbour

Deep-water Lerwick Harbour, with Dales Voe & Greenhead facilities, has over five decades of experience supporting the lifecycle of energy projects. Existing capabilities and potential future expansion maximise Lerwick’s strategic proximity to future offshore wind farms. The proposed Ultra-Deep-Water Quay positions Lerwick as a UK port option for tow-to-port operations.

Image Credits: Shetland Flyer Media

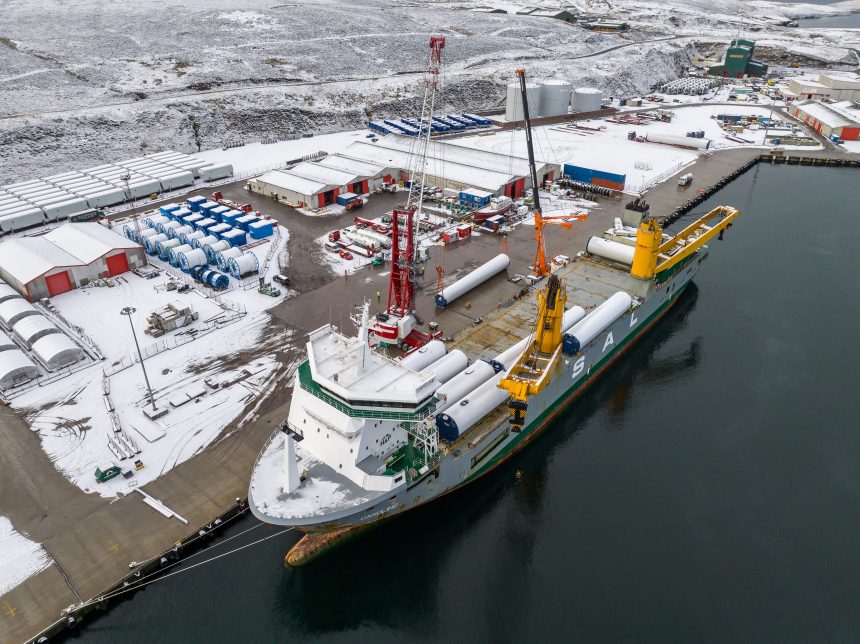

2 c Shetland Flyer Aerial Media

Address: Lerwick Port Authority, Albert Building, Lerwick, Shetland, ZE1 0LL
Email: info@lerwick-harbour.co.uk
Website: www.lerwick-harbour.co.uk

  • Water depths up to 25m
  • 20 wet storage locations available
  • 25 Hectares of yard space available
  • 60 t/m2 load bearing capacity

Value Proposition for Offshore Wind

  • Assembly

    Assembly

  • Marshalling

    Marshalling

  • Wet Storage

    Wet Storage

  • Integration

    Integration

  • O&M

    O&M

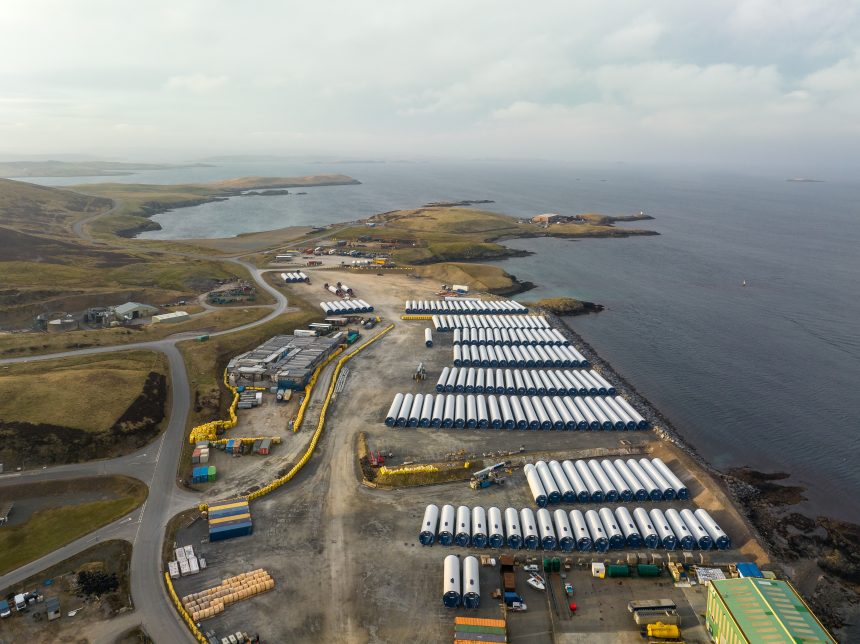

6 c Shetland Flyer Aerial Media

Existing Quayside & Water Depths

  • Quay Length at <8m CD Water Depth: 3,083m
  • Quay Length at 8m-10m CD Water Depth: 1,440m
  • Quay Length at 10m-12m CD Water Depth: 0
  • Quay Length at 12m+ CD Water Depth: 127m
  • Total Quay Length: 4,650m

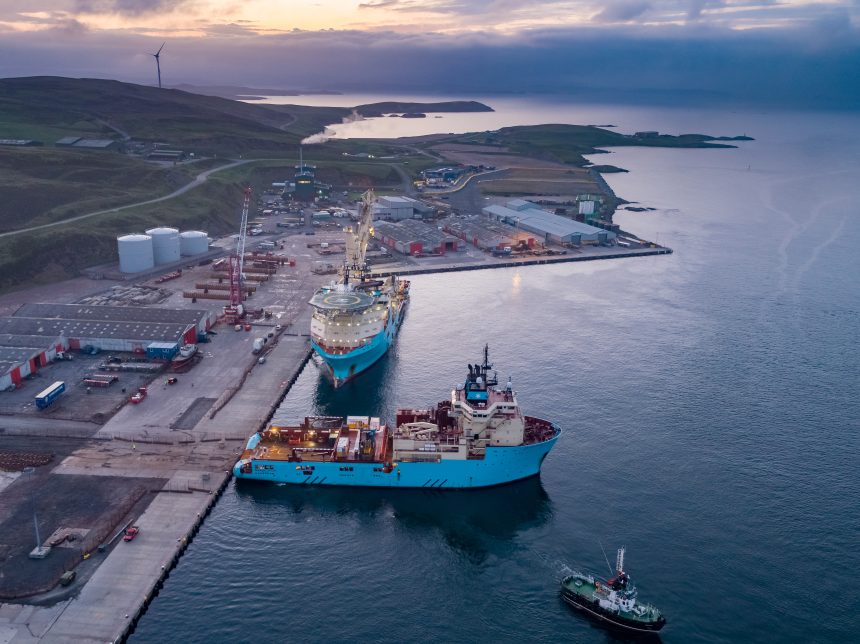

7 c Shetland Flyer Aerial Media

Existing Site Infrastructure

  • Max Load Bearing - Quayside: 60 t/m² UDL
  • Max Load Bearing - Storage Area: 60 t/m² UDL
  • Yard Space at Quayside: 25 Hectares
  • Covered Storage: 12,000 m²
  • Wet Storage: 20

Port Wind Experience

  • WTG Marshalling

    WTG Marshalling

  • Wet Storage

    Wet Storage

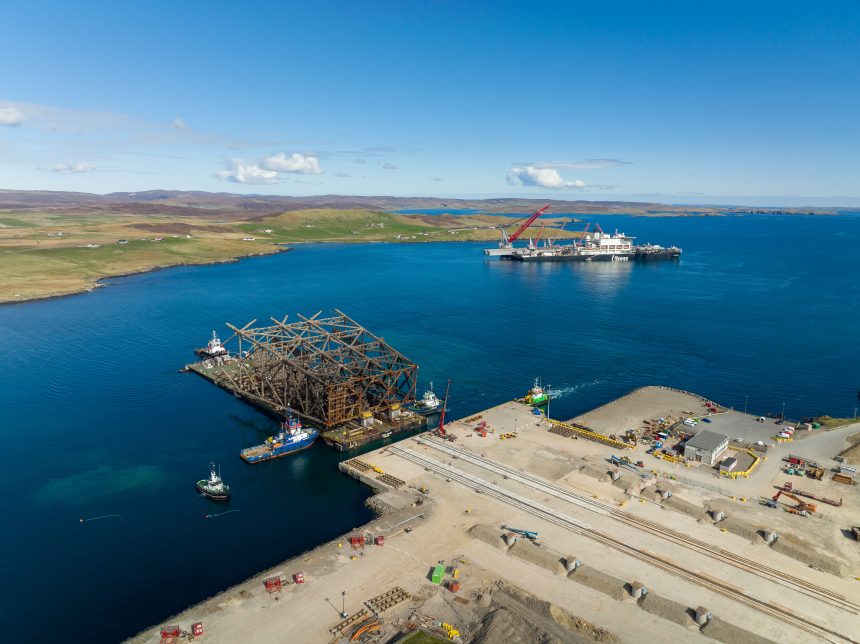

5 c Shetland Flyer Aerial Media

Future Infrastructure Plans

  • Quayside Length: 4,823m
  • Water Depth - Minimum: 6.0m
  • Water Depth - Maximum: 24.0m
  • Load Bearing - Quayside: 60 t/m²
  • Load Bearing - Storage Area: 60 t/m²
  • Yard Space at Quayside: 50 Hectares
  • Wet Storage: 20
  • Year of Implementation: 2030
  • Year Available: 2030

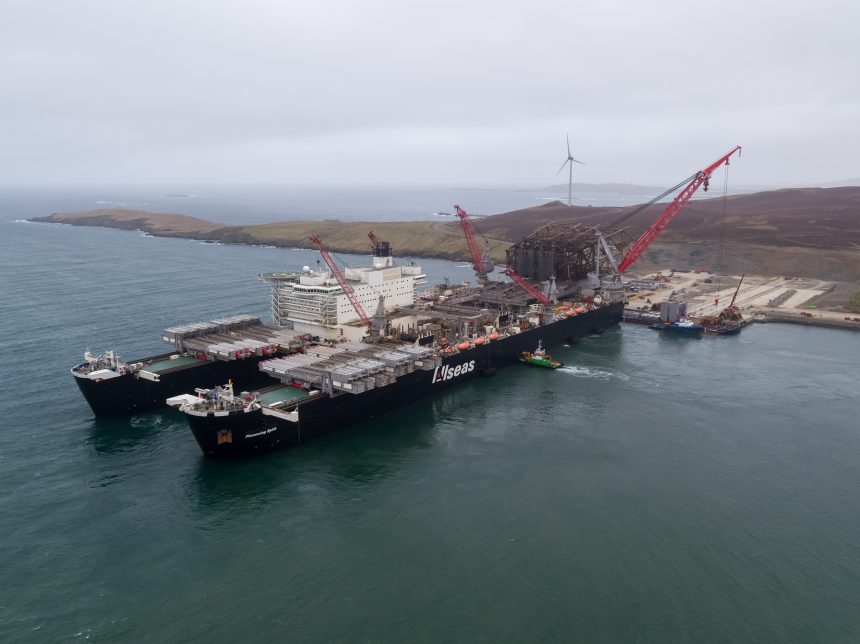

3 c Shetland Flyer Aerial Media

Existing Infrastructure for XL Components

  • Heavy Lift Quay Length: 1,135m
  • Heavy Lift Quay Area: 16,000m²
  • Heavy Lift Load Bearing - Quayside: 60 t/m² UDL
  • Large Component Laydown Area: 25 Hectares
  • Laydown Area Load Bearing Capacity: 60 t/m² UDL

Future Infrastructure for XL Components

  • Heavy Lift Quay Length: 1,245m
  • Heavy Lift Quay Area: 17,000m²
  • Heavy Lift Load Bearing - Quayside: 60 t/m² UDL
  • Large Component Laydown Area: 50 Hectares
  • Laydown Area Load Bearing Capacity: 60 t/m² UDL
